Top Beam Clamp Small Mouth Zinc
Top Beam Clamp Small Mouth Zinc:
- Made of zinc plated steel
- Hardened steel cup point set screw
- Complies with Manufacturers’ Standardization Society MSS SP-58 and SP-69 (Type 19)
- Recommended for under roof installations with bar joist-type construction where joist thickness does not exceed 5/8″

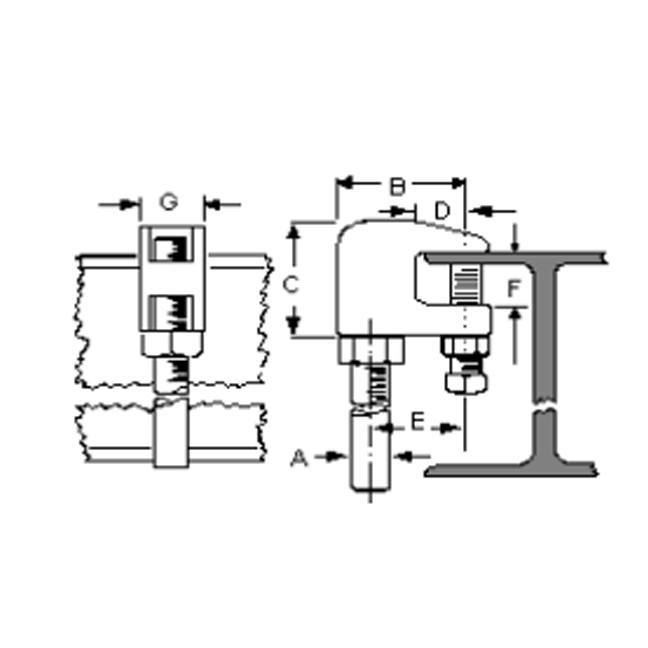

| Rod Size | SPECIFICATION DATA (inches) | Maximum | Recommended | |||||
| A | B | C | D | E | F | G | Pipe Size (inches) |
Maximum Load (lbs) |
| 3/8 | 1-1/4 | 1-1/2 | 1/2 | 7/8 | 3/4 | 7/8 | 4 | 350 |
| 1/2 | 1-5/16 | 1-1/2 | 1/2 | 1 | 3/4 | 7/8 | 4 | 470 |
| 5/8 | 1-3/4 | 1-3/4 | 5/8 | 1-3/8 | 3/4 | 1-1/8 | 5 | 550 |
| 3/4 | 1-7/8 | 1-7/8 | 5/8 | 1-3/8 | 3/4 | 1-3/8 | 6 | 700 |
| 7/8 | 2-3/8 | 1-7/8 | 5/8 | 1-3/8 | 3/4 | 1-3/8 | 8 | 1000 |
